Model :

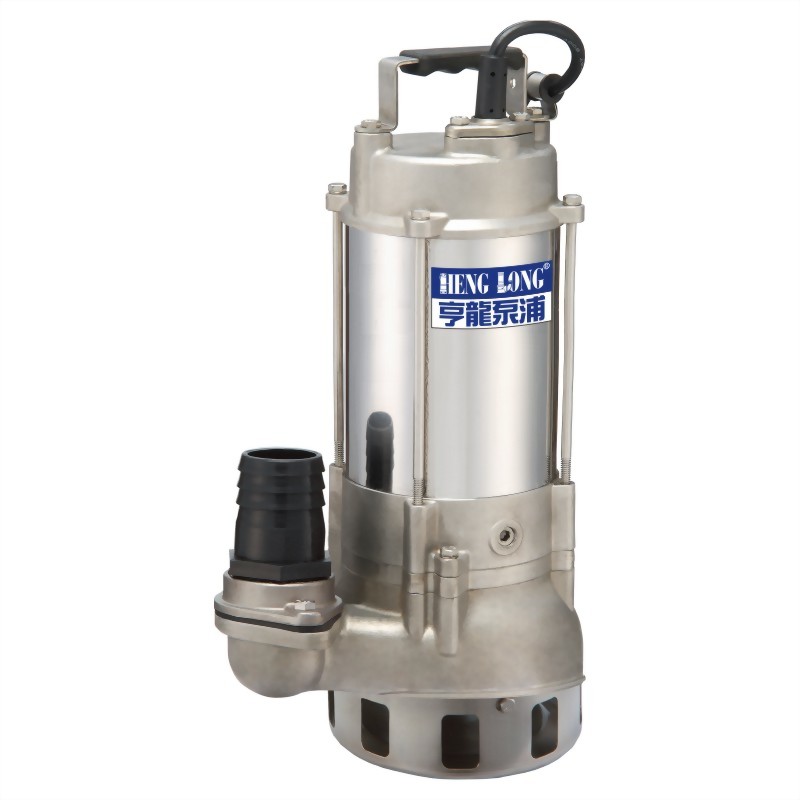

P-3052 220V
| TYPE | FREQ. | VOLT. | PHASE | POWER | DISCHARGE | POLE/ROTATION | STD.HEAD | STD.FLOW | MAX.HEAD | MAX.FLOW |
WEIGHT |
TUS-P WEIGHT |
SOLID PASSAGE |
|||||||||
| Hz | V | PH | HP | kW | INCH | MM | P/rpm | M | M3/min | M | M3/min | KG | KG | MM | ||||||||
| P-3052 |
50 |
60 |
220 | 3Φ | 0.5 | 0.40 | 2" | 50 | 2P | 2850 | 3450 | 4 | 6 | 0.20 | 0.20 | 9 | 11 | 0.25 | 0.30 | 15 | 26 | 35 |
- The pump cover is made with SCS14 dewaxing precision casting manufactured to resist weak acid and alkaline wastewater.
- Cable base and core wire are manufactured with an epoxy resin treatment to prevent moisture from entering the motor.
- The volute casing is equipped with a vortex impeller for pumping mud and sewage effectively without clogging.
- The mechanical seal parts are combined with high-quality double silicon carbide to enhance stainless steel pumps to work in weak acid and alkaline environments.
- The motor has insulation in accordance with the standards of IEC IP68.
- Auto-cut prevents the motor from overheating.
- This type can be equipped with a lift bracket.
- Wastewater lift station, municipal wastewater treatment plant.
- Building a wastewater treatment system.
- Piggery excrement, animal & poultry farm.
- School, hospital, community wastewater treatment system.
- Food, paper, mining, textile, leather industry wastewater treatment system.
