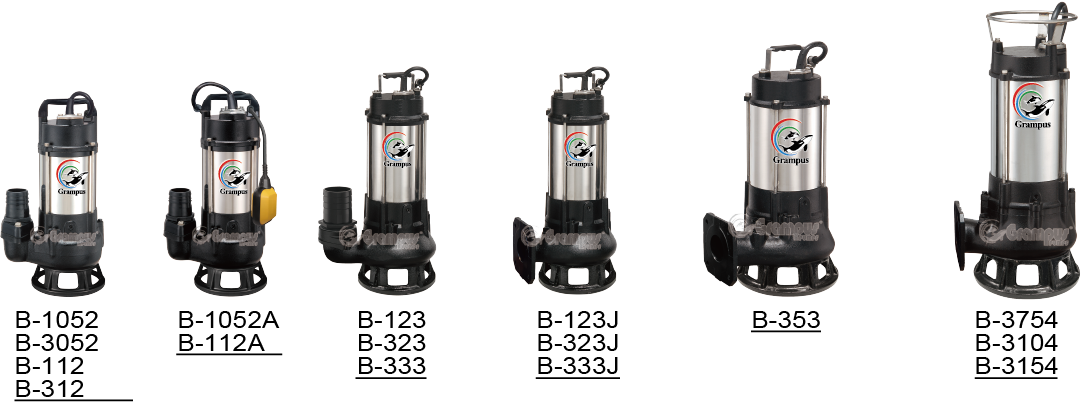

Non-clog Sewage Submersible Pump: B series

Non-clog sewage submersible pump: B series


■ FEATURES

  1. Cable base and core wire are dealt with Epoxy Resin to avoid moisture in the motor.
  2. Volute casing is equipped with a vortex impeller for drawing out mud, sewage, and wastewater effectively.
  3. Equipped with vent bolt at volute casing to avoid air lock ensuring the pump operation is steady.
  4. Equipped with a high-quality dual SIC mechanical seal.
  5. Motor is B class (130°C) insulation, enclosure IEC IP68.
  6. Auto-cut prevents the motor from overheat.
  7. This type can be equipped with a lift bracket.

■ APPLICATION

  1. Wastewater lift station, municipal wastewater treatment plant.
  2. Building a wastewater treatment system.
  3. Piggery excrement, animal & poultry farm.
  4. School, hospital, and community wastewater treatment system.
  5. Food, paper, mining, textile, and leather industry wastewater treatment system.

■ STRUCTURAL DRAWING

Structural drawing for non-clog sewage submersible pump: B series

■ DIMENSION

Dimesion for non-clog sewage submersible pump: B series

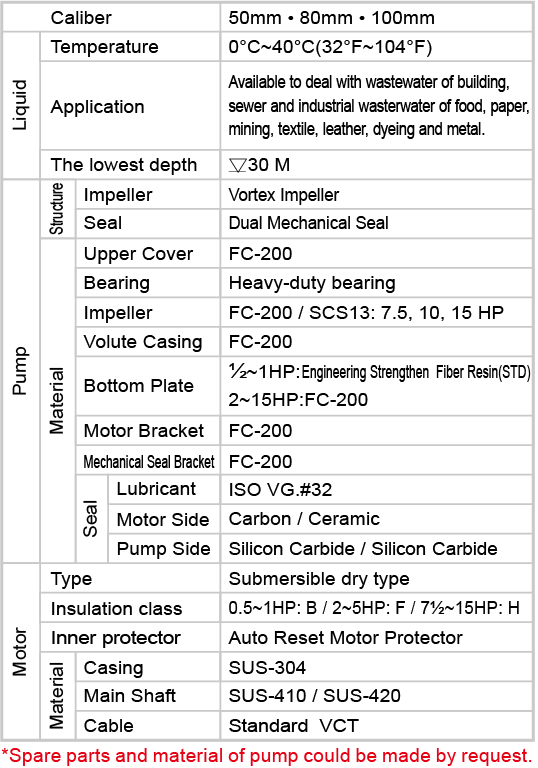

■ MATERIAL AND STANDARD TABLE

Material and standard table for non-clog sewage submersible pump: B series

■ PERFORMANCE CURVE

Performance curve of non-clog sewage submersible pump: B series

■ SPECIFICATION

TYPE FREQ. PHASE POWER DISCHARGE POLE/ROTATION STD.HEAD STD.FLOW MAX.HEAD MAX.FLOW

WEIGHT

TOS-B

WEIGHT

SOLID

PASSAGE

Hz PH HP kW INCH MM P/rpm M M3/min M
 M3/min KG KG MM
B-1052(A) 50 60 1Φ ½ 0.4 2" 50 2P 2850 3450 4 4 0.20 0.20 9 9.5 0.30 0.29 18 27 35
B-3052 50 60 3Φ ½ 0.4 2" 50 2P 2850 3450 4 4 0.20 0.20 9 9.5 0.30 0.29 17 26 35
B-112(A) 50 60 1Φ 1 0.75 2" 50 2P 2850 3450 8 7.5 0.20 0.20 12 13 0.40 0.40 20 29 35
B-312 50 60 3Φ 1 0.75 2" 50 2P 2850 3450 8 7.5 0.20 0.20 12 13 0.40 0.40 20 29 35
B-123(J) 50 60 1Φ
 2 1.5 3" 80 2P 2850 3450 7 7.5 0.50 0.50 14.5 16 0.80 0.70 35 55 40
B-323(J) 50 60 3Φ 2 1.5 3" 80 2P 2850 3450 7 7.5 0.50 0.50 14.5 16 0.80 0.70 34 54 40
B-333(J) 50 60 3Φ 3 2.2 3" 80 2P 2850 3450 10 10 0.50 0.50 17.5 20 0.90 1.00 37 57 40
B-353 50 60 3Φ 5 3.7 3" 80 2P 2850 3450 16.5 17 0.50 0.50 23 25 1.10 1.30 45 65 40
B-3754 50 60 3Φ 7½ 5.5 4" 100 2P 2850 3450 12.5 14 1.00 1.00 26 29 1.50 1.50 55 75 50
B-3104 50 60 3Φ 10 7.5 4" 100 2P 2850 3450 24 25 1.00 1.00 32 35 1.55 1.60 60 80 50
B-3154 50 60 3Φ
 15 11 4" 100 2P 2850 3450 23 26 1.00 1.00 32 37 2.10 2.20 75 95 50
